Hastelloy Fitting

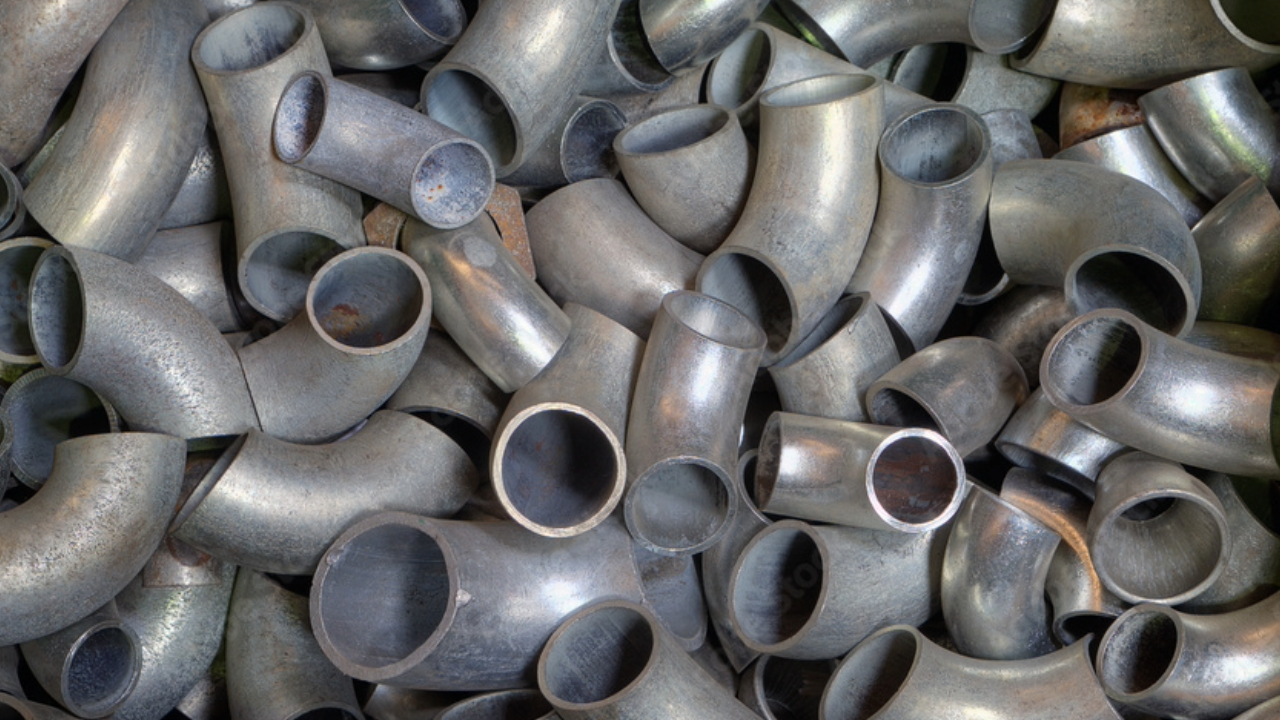

Hastelloy fittings are durable components used to alter direction, connect pipes of varying sizes, or branch off fluid pathways within a piping system. Their robust construction ensures long-term durability in dynamic flow environments where erosion and corrosion are simultaneous threats. These fittings are designed to handle internal pressure changes, high-velocity flow, and mechanical stress from fluid movement or thermal expansion. They are often installed in tight or complex piping layouts where flexibility and precision are essential. Due to their high resistance to stress corrosion cracking and metal fatigue, these fittings are used in mission-critical systems such as reactors, agitator outlets, and scrubber loops.
Hastelloy Fitting - Specification Table
| Parameter | Details |
|---|---|
| Manufacturing Standards | ASTM B366 (Wrought Fittings), ASME B16.9 (Butt-Weld), ASME B16.11 (Forged Socket/Threaded) |
| Fitting Types | Elbow (90°, 45°), Tee, Reducer (Concentric/Eccentric), Stub End |
| Material Grades | C-4, C-22, C-22HS, C-276, C-2000, B, B-2, B-3, G, G-2, X, N, W |
| Size Range | ½" NB to 24" NB (larger on request) |
| Wall Thickness (Schedules) | SCH 10S, 40S, 80S, 160, XXS, Custom |
| Connection Ends | Butt-Weld (BW), Socket Weld (SW), Threaded (NPT/BSP), Flanged (Stub End) |
| Forming Process | Hot Formed, Cold Formed, Forged, Machined |
| Heat Treatment | Solution Annealed or As Required |
| Surface Finish | Pickled & Passivated, Machined, Sandblasted (if specified) |
| Dimensional Standards | ANSI/ASME B16.9, B16.11, MSS SP-43 (for light gauge), MSS SP-97 |
| Tolerances | As per ASTM B366 and relevant ASME standards |
| Typical Applications | Corrosive fluid systems, reactors, offshore rigs, chemical transfer lines, high-temperature gas lines |
Applications
| Application | Description |
|---|---|
| Chemical Processing | Used in highly corrosive environments for handling acids and other aggressive chemicals. |
| Aerospace | Components exposed to high temperature and stress, such as engine parts. |
| Pharmaceuticals | Used in the manufacturing of drugs due to their ability to resist corrosion and contamination. |
| Nuclear Reactors | Components exposed to radiation and extreme conditions, requiring high strength and resistance. |
| Oil & Gas | Used in piping systems for offshore drilling, refinery processing, and petrochemical applications. |
