Forged Fitting





Type



  • Elbow, Tee, Cross, Coupling, Half Coupling, Cap, Plug, Bushing, Union, HEX. Nipple, Swage nipple, Bull Plug, Street Elbow, Boss, Reducer Insert and Out-let…etc
  • Threaded (NPT or PT Type), Socket-Weld, Butt-welding



Size



NPS 1/8”~4” DN 6~100



Rating Pressure



Threaded End – 2000 / 3000 / 6000 LBS.

Socket-weld End – 3000 / 6000 / 9000 LBS.

Butt-weld End – SCH40 / SCH80 / SCH160 / XXS.



Specifications



  • Dim. Spec. :

ASME B16.11-2009 (Revision of ASME B16.11-2005) MSS – SP – 79, 83, 95, 97 and BS3799.
ANSI / ASME B1.20.1-1983 NPT

  • Material Spec. :

ASTM A105, A350 LF2, A106, A312, A234, A403
ASTM A182 (F304, F304L, F316, F316L, F304H, F316H, F317L, F321, F11, F22, F91)

  • Size of Raw Material: DIA. 19~85mm Round Bar.



Marking



  • Carbon and Alloy Steel: Marked by stamping.
  • Stainless Steel: Marked by electro-etched, jet printed or stamping.



  • 3/8” under: Brand only.
  • 1/2” to 4”: Marked with brand, material, heat code, B16 (For ASME B16.11 product), pressure and size.



Finishing



Carbon steel: Galvanized or black. Stainless steel: Pickled.

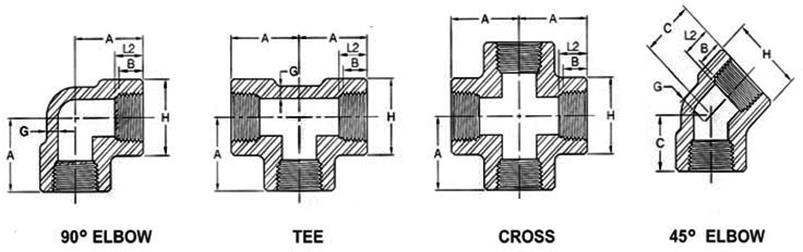

ASME B16.11-2009 (Revision of ASME B16.11-2005)




DN



Nom. Pipe Size

Center to End Elbow, Tee, Cross A

Center to End 45° Elbow
C

Outside Diameter Of Band
H

Minimum Wall Thickness
G

Length of Thread Min. (1)

2000

3000

6000

2000

3000

6000

2000

3000

6000

2000

3000

6000

B

L2

6

1/8”

21

21

25

17

17

19

22

22

25

3.18

3.18

6.35

6.4

6.7

8

1/4”

21

25

28

17

19

22

22

25

33

3.18

3.30

6.60

8.1

10.2

10

3/8”

25

28

33

19

22

25

25

33

38

3.18

3.51

6.98

9.1

10.4

15

1/2”

28

33

38

22

25

28

33

38

46

3.18

4.09

8.15

10.9

13.6

20

3/4”

33

38

44

25

28

33

38

46

56

3.18

4.32

8.53

12.7

13.9

25

1”

38

44

51

28

33

35

46

56

62

3.68

4.98

9.93

14.7

17.3

32

1-1/4”

44

51

60

33

35

43

56

62

75

3.89

5.28

10.59

17.0

18.0

40

1-1/2”

51

60

64

35

43

44

62

75

84

4.01

5.56

11.07

17.8

18.4

50

2”

60

64

83

43

44

52

75

84

102

4.27

7.14

12.09

19.0

19.2

65

2-1/2”

76

83

95

52

52

64

92

102

121

5.61

7.65

15.29

23.6

28.9

80

3”

86

95

106

64

64

79

109

121

146

5.99

8.84

16.64

25.9

30.5

100

4”

106

114

114

79

79

79

146

152

152

6.55

11.18

18.67

27.7

33.0

  • Dimensions in Millimeters.
  • Dimension B is minimum length of perfect thread. The length of useful thread (B plus threads with fully formed roots and flat crests) shall not be less than L2 (effective length of external thread) required by American National Standard for Pipe Threads (ANSI/ASME B1.20.1)

  • ASME B16.11-2009 (Revision of ASME B16.11-2005)



    DN



    Nom. Pipe
    Size

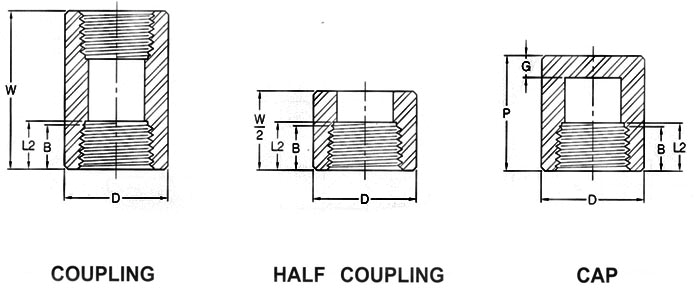

    Center to End Coupling

    W

    Center to End Cap

    P

    Outside Diameter

    D

    End Wall Thickness

    G Min.

    Length of Thread

    Min. (1)



    3000 & 6000

    3000

    6000

    3000

    6000

    3000

    6000

    B

    L2

    6

    1/8”

    32

    19

    16

    4.8

    6.4

    6.7

    8

    1/4”

    35

    25

    27

    19

    25

    4.8

    6.4

    8.1

    10.2

    10

    3/8”

    38

    25

    27

    22

    32

    4.8

    6.4

    9.1

    10.4

    15

    1/2”

    48

    32

    33

    28

    38

    6.4

    7.9

    10.9

    13.6

    20

    3/4”

    51

    37

    38

    35

    44

    6.4

    7.9

    12.7

    13.9

    25

    1”

    60

    41

    43

    44

    57

    9.7

    11.2

    14.7

    17.3

    32

    1-1/4”

    67

    44

    46

    57

    64

    9.7

    11.2

    17.0

    18.0

    40

    1-1/2”

    79

    44

    48

    64

    76

    11.2

    12.7

    17.8

    18.4

    50

    2”

    86

    48

    51

    76

    92

    12.7

    15.7

    19.0

    19.2

    65

    2-1/2”

    92

    60

    64

    92

    108

    15.7

    19.0

    23.6

    28.9

    80

    3”

    108

    65

    68

    108

    127

    19.0

    22.4

    25.9

    30.5

    100

    4”

    121

    68

    75

    140

    159

    22.4

    28.4

    27.7

    33.0

      1. Dimensions in Millimeters.
      2. Dimension B is minimum length of perfect thread. The length of useful thread (B plus threads with fully formed roots and flat crests) shall not be less than L2 (effective length of external thread) required by American National Standard for Pipe Threads (ANSI/ASME B1.20.1)

    ASME B16.11-2009 (Revision of ASME B16.11-2005)



    DN



    Nom. Pipe Size

    Length (Min.)



    A

    Square Head Plug

    Round Head Plug

    Hex. Head Plug & Bushing

    Height of Square (Min.)

    B

    Width Flat (Min.)



    C

    Nominal Diameter of Head (Nom)
    E

    Length (Min.)



    D

    Width Flat (Nom.)



    F

    Hex. Height (Min.)

    Bushing

    G

    Plug

    H

    6

    1/8”

    10

    6

    7

    10

    35





    6

    8

    1/4”

    11

    6

    10

    14

    41

    16

    3

    6

    10

    3/8”

    13

    8

    11

    18

    41

    18

    4

    8

    15

    1/2”

    14

    10

    14

    21

    44

    22

    5

    8

    20

    3/4”

    16

    11

    16

    27

    44

    27

    6

    10

    25

    1”

    19

    13

    21

    33

    51

    36

    6

    10

    32

    1-1/4”

    21

    14

    24

    43

    51

    46

    7

    14

    40

    1-1/2”

    21

    16

    28

    48

    51

    50

    8

    16

    50

    2”

    22

    18

    32

    60

    64

    65

    9

    18

    65

    2-1/2”

    27

    19

    36

    73

    70

    75

    10

    19

    80

    3”

    28

    21

    41

    89

    70

    90

    10

    21

    100

    4”

    32

    25

    65

    114

    76

    115

    13

    25

    1. Dimensions in Millimeters.
    2. CAUTIONARY NOTE REGARDING HEX BUSHINGS.

    Hex head bushing of one-size reduction should not be used in services where they might be subject to harmful loads and forces other than internal pressure.

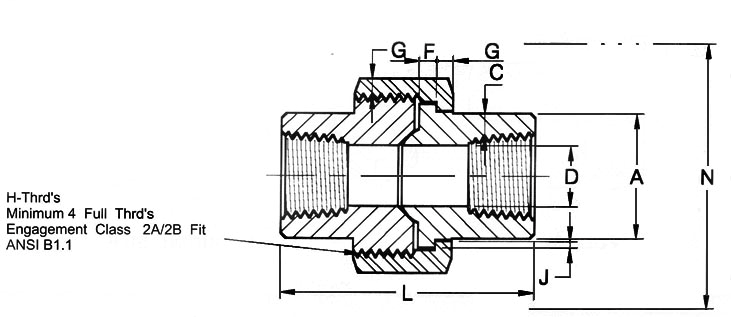

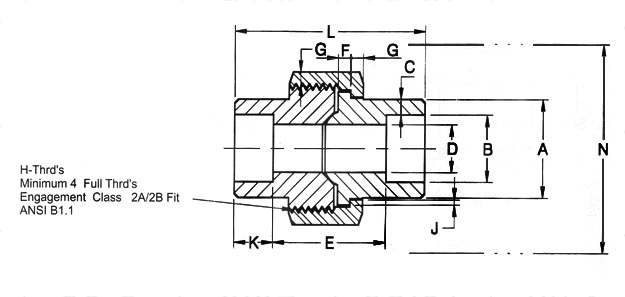

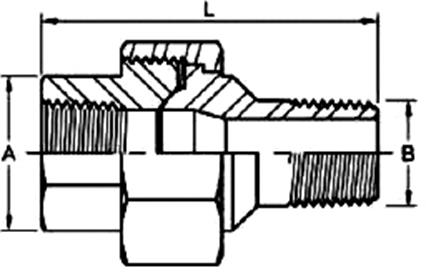

    Unions Threaded

    Threaded End MSS-SP-83-2006



    Nom. Pipe Size



    Pipe End



    Wall



    Water Way Bore



    Male Flange



    Nut

    Threads Per 25.4mm



    Bearing

    Length Assem. Nom.

    Clear Assem. Nut

    Min. A

    Min. C

    D

    Min. F

    Min. G

    Max. H

    Min. J

    L

    N

    1/8”

    14.7

    2.41

    8.43
    6.43

    3.18

    3.18

    16

    1.24

    41.4

    50.8

    1/4”

    19.0

    3.02

    11.13
    9.45

    3.18

    3.18

    16

    1.24

    41.4

    50.8

    3/8”

    22.9

    3.20

    14.27
    13.51

    3.43

    3.43

    14

    1.37

    46.0

    55.9

    1/2”

    27.7

    3.73

    17.86
    17.07

    3.68

    3.68

    14

    1.50

    49.0

    58.4

    3/4”

    33.5

    3.91

    23.01
    21.39

    4.06

    4.06

    11

    1.68

    56.9

    66.0

    1”

    41.4

    4.55

    28.98
    27.74

    4.57

    4.45

    11

    1.85

    62.0

    78.7

    1-1/4”

    50.5

    4.85

    37.69
    35.36

    5.33

    5.21

    11

    2.13

    71.1

    94.0

    1-1/2”

    57.2

    5.08

    43.54
    41.20

    5.84

    5.59

    10

    2.31

    76.5

    111.8

    2”

    70.1

    5.54

    55.58
    52.12

    6.60

    6.35

    10

    2.69

    86.1

    132.1

    2-1/2”

    85.3

    7.01

    66.27
    64.31

    7.49

    7.11

    8

    3.07

    102.4

    149.9

    3”

    102.4

    7.62

    88.25
    77.27

    8.26

    8.00

    8

    3.53

    109.0

    175.3

        • Dimensions in Millimeters.
        • Upper and lower values for each size are the respective maximum and minimum dimensions.

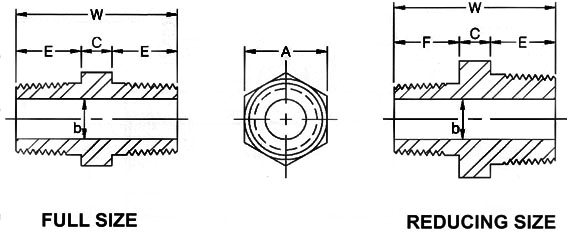

        Hex Nipples Threaded




        Nominal Size

        A

        (Min)

        W

        (Min)

        E

        (Min)

        b

        C

        (Min)

        F

        (Min)

        DN

        Inch

        3000

        6000

        6

        1/8”

        11

        26

        10

        5

        2

        6

        -

        8

        1/4”

        15

        36

        15

        8

        6

        6

        -

        8 x 6

        1/4”x1/8”

        15

        31

        15

        5

        2

        6

        10

        10

        3/8”

        18

        40

        16

        11

        8

        8

        -

        10 x 8

        3/8”x1/4”

        18

        39

        16

        8

        6

        8

        15

        15

        1/2”

        22

        48

        20

        14

        11

        8

        -

        15 x 10

        1/2”x3/8”

        22

        44

        20

        11

        8

        8

        16

        15 x 8

        1/2”x1/4”

        22

        43

        20

        8

        6

        8

        15

        20

        3/4”

        27

        52

        21

        19

        13

        10

        -

        20 x 15

        3/4”x1/2”

        27

        50

        21

        14

        11

        9

        20

        20 x 10

        3/4”x3/8”

        27

        46

        21

        11

        8

        9

        16

        25

        1”

        35

        60

        25

        24

        17

        10

        -

        25 x 20

        1”x3/4”

        35

        56

        25

        19

        13

        10

        21

        25 x 15

        1”x1/2”

        35

        55

        25

        14

        11

        10

        20

        40

        1-1/2”

        50

        68

        26

        38

        30

        16

        -

        40 x 25

        1-1/2”x1”

        50

        67

        26

        24

        17

        16

        25

        40 x 20

        1-1/2”x3/4”

        50

        63

        26

        19

        13

        16

        21

        40 x 15

        1-1/2”x1/2”

        50

        62

        26

        14

        11

        16

        20

        50

        2”

        62

        71

        27

        49

        39

        17

        -

        50 x 40

        2”x1-1/2”

        62

        70

        27

        38

        30

        17

        26

        50 x 25

        2”x1”

        62

        70

        27

        24

        17

        18

        25

        50 x 20

        2”x3/4”

        62

        65

        27

        19

        13

        17

        21

        50 x 15

        2”x1/2”

        62

        65

        27

        14

        11

        18

        20

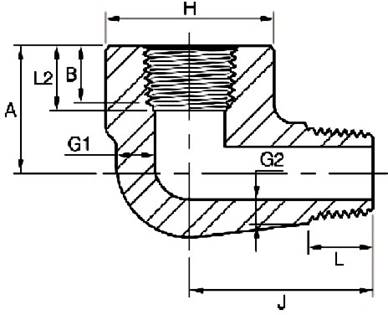

        Street Elbows Threaded

        Threaded End ASME B16.11-2009 (Revision of ASME B16.11-2005)



        DN



        Nom. Pipe Size



        H



        A



        J



        G1
        (Min.)

        G2 (1)
        (Min)

        B (2)
        (Min)

        L2 (2)
        (Min)



        L

        (Min)

        3000

        6000

        3000

        6000

        3000

        6000

        3000

        6000

        3000

        6000

        6

        1/8”

        19

        25

        19

        22

        25

        32

        3.18

        5.08

        2.74

        4.22

        6.4

        6.7

        10.0

        8

        1/4”

        25

        32

        22

        25

        32

        38

        3.30

        5.66

        3.22

        5.28

        8.1

        10.2

        11.0

        10

        3/8”

        32

        38

        25

        28

        38

        41

        3.50

        6.98

        3.50

        5.59

        9.1

        10.4

        13.0

        15

        1/2

        38

        44

        28

        35

        41

        48

        4.09

        8.15

        4.16

        6.53

        10.9

        13.6

        14.0

        20

        3/4

        44

        51

        35

        44

        48

        57

        4.32

        8.53

        4.88

        6.86

        12.7

        13.9

        16.0

        25

        1

        51

        62

        44

        51

        57

        66

        4.98

        9.93

        5.56

        7.95

        14.7

        17.3

        19.0

        32

        1-1/4

        62

        70

        51

        54

        66

        71

        5.28

        10.59

        5.56

        8.48

        17.0

        18.0

        21.0

        40

        1-1/2

        70

        84

        54

        64

        71

        84

        5.56

        11.07

        6.25

        8.89

        17.8

        18.4

        21.0

        50

        2

        84

        102

        64

        83

        84

        105

        7.14

        12.09

        7.64

        9.70

        19.0

        19.0

        22.0

        1. Dimensions in Millimeters.
        2. Dimension B is minimum length of perfect thread. The length of useful thread (B plus threads with fully formed roots and flat crests) shall not be less than L2 (effective length of external thread) required by American National Standard for pipe threads (ANSI/ASME B1.20.1)

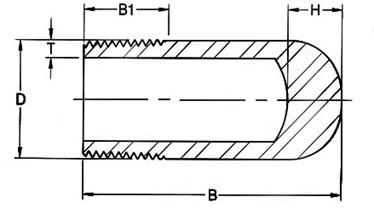

        Bull Plugs Threaded



        MSS-SP-95-2006



        Nom. Pipe Size







        T (Min)



        D

        B

        B1

        Sch.40 (STD)

        Sch.80 (XS)

        Sch.160

        XXS

        H

        1/8”

        10.3

        34

        9.5

        1.73

        2.41





        14

        1/4”

        13.7

        34

        11.0

        2.24

        3.02





        14

        3/8”

        17.1

        57

        12.5

        2.31

        3.20





        14

        1/2”

        21.3

        64

        14.5

        2.77

        3.73

        4.78

        7.47

        14

        3/4”

        26.7

        70

        16.0

        2.87

        3.91

        5.56

        7.82

        18

        1”

        33.4

        76

        19.0

        3.38

        4.56

        6.35

        9.09

        18

        1-1/4”

        42.2

        83

        20.5

        3.56

        4.85

        6.35

        9.70

        18

        1-1/2”

        48.3

        89

        20.5

        3.68

        5.05

        7.14

        10.15

        18

        2”

        60.3

        102

        22.0

        3.91

        5.54

        8.74

        11.07

        20

        2-1/2”

        73.0

        127

        27.0

        5.16

        7.01

        9.53

        14.02

        20

        3”

        88.9

        152

        28.5

        5.49

        7.60

        11.13

        15.24

        20

        4”

        114.3

        178

        32.0

        6.35

        8.08

        13.49

        17.12

        20

        1. Dimensions in Millimeters.
        2. Thread in accordance with ASME B1.20.1
        3. Wall thickness (T Min.) in accordance with ASME B36.10M.

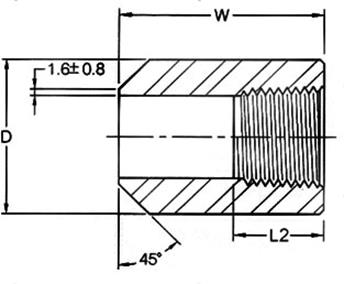

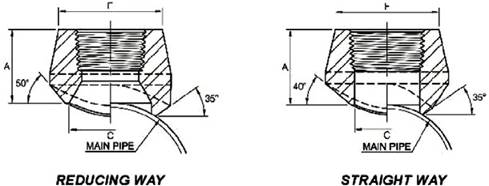

        Bosses Threaded

        BS3799-1974



        DN



        Nom. Pipe Size

        D

        W

        L2
        (Min)

        3000lb

        6000lb

        3000lb

        6000lb

        3000lb

        6000lb

        6

        1/8”

        16.0

        22.0

        38.0

        6.70

        8

        1/4”

        19.0

        26.0

        41.0

        10.21

        10

        3/8”

        22.0

        32.0

        45.0

        10.36

        15

        1/2”

        29.0

        38.0

        51.0

        13.56

        20

        3/4”

        35.0

        45.0

        51.0

        13.86

        25

        1”

        45.0

        60.0

        51.0

        17.34

        40

        1-1/2”

        64.0

        76.0

        51.0

        18.38

        50

        2”

        76.0

        95.0

        51.0

        19.22

        65

        2-1/2”

        95.0



        51.0



        28.89



        80

        3”

        110.0



        57.0



        30.48



        100

        4”

        140.0



        64.0



        33.02



        Dimensions in Millimeters.



        (Continued)


        Nominal Pipe Size (NPS)

        Outside Diameter

        End To End
        “A”

        Wall Thickness

        Large End D1

        Small End D2

        T1

        T2

        Sch40 (STD)

        Sch80 (XS)

        Sch160

        XXS

        Sch40 (STD)

        Sch80 (XS)

        Sch160

        XXS

        3-1/2”x1-1/2”

        101.6

        48.3

        203

        5.7

        8.1





        3.7

        5.1

        7.1

        10.2

        3-1/2”x2”

        101.6

        60.3

        203

        5.7

        8.1





        3.9

        5.5

        8.7

        11.1

        3-1/2”x2-1/2”

        101.6

        73.0

        203

        5.7

        8.1





        5.2

        7.0

        9.5

        14.0

        3-1/2”x3”

        101.6

        88.9

        203

        5.7

        8.1





        5.5

        7.6

        11.1

        15.2

        4”x1/4”

        114.3

        13.7

        229

        6.0

        8.6

        13.5

        17.1

        2.2

        3.0





        4”x3/8”

        114.3

        17.1

        229

        6.0

        8.6

        13.5

        17.1

        2.3

        3.2





        4”x1/2”

        114.3

        21.3

        229

        6.0

        8.6

        13.5

        17.1

        2.8

        3.7

        4.8

        7.5

        4”x3/4”

        114.3

        26.7

        229

        6.0

        8.6

        13.5

        17.1

        2.9

        3.9

        5.6

        7.8

        4”x1”

        114.3

        33.4

        229

        6.0

        8.6

        13.5

        17.1

        3.4

        4.5

        6.4

        9.1

        4”x1-1/4”

        114.3

        42.2

        229

        6.0

        8.6

        13.5

        17.1

        3.6

        4.9

        6.4

        9.7

        4”x1-1/2”

        114.3

        48.3

        229

        6.0

        8.6

        13.5

        17.1

        3.7

        5.1

        7.1

        10.2

        4”x2”

        114.3

        60.3

        229

        6.0

        8.6

        13.5

        17.1

        3.9

        5.5

        8.7

        11.1

        4”x2-1/2”

        114.3

        73.0

        229

        6.0

        8.6

        13.5

        17.1

        5.2

        7.0

        9.5

        14.0

        4”x3”

        114.3

        88.9

        229

        6.0

        8.6

        13.5

        17.1

        5.5

        7.6

        11.1

        15.2

        4”x3-1/2”

        114.3

        101.6

        229

        6.0

        8.6

        13.5

        17.1

        5.7

        8.1





          1. Dimensions in Millimeters.
          2. Wall Thickness:T1 & T2 in accordance with ASME B36.10M

        PBE:Plain Both Ends

        BBE:Bevel Both Ends

        TBE:Thread Both Ends

        PSE:Plain Small End

        BSE:Bevel Small End

        TSE:Thread Small End

        PLE:Plain Large End

        BLE:Bevel Large End

        TLE:Thread Large End

        Dimensional Tolerance of Swaged Nipple

        Nominal Pipe Size (inch)

        Overall Length (mm)

        Outside diameter at end

        Wall Thickness (prior to threading or grooving)

        Square Cut Ends (mm)

        Other End Connection (mm)

        1/8” to 3/8”

        ± 1.5

        + 0.40

        ± 0.80



        Not less than 87.5% of nominal wall thickness

        - 0.80

        1/2” to 1-1/2”

        ± 1.5

        + 0.40

        + 1.50

        - 0.80

        - 0.80

        2” to 2-1/2”

        ± 3.0

        ± 0.80

        + 1.50

        - 0.80

        3” to 4”

        ± 3.0

        ± 0.80

        ± 1.50

        1. Dimensions in Millimeters.
        2. Prior to threading or grooving

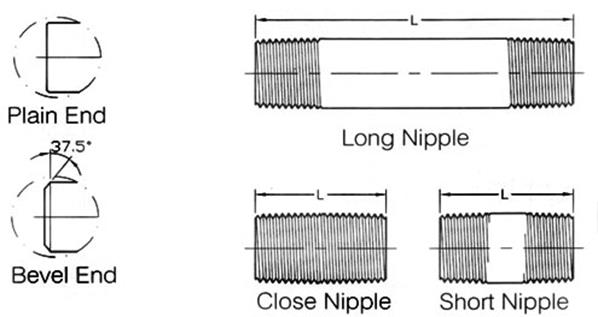

        Pipe Nipples Threaded



        Nom. Pipe Size

        L

        Plain End Weight (kg/m)

        Close Nipple

        Short Nipple

        Long Nipple

        Sch40/STD

        Sch80/XS

        Sch160

        XXS

        1/8”

        3/4

        1-1/2

        2~12

        0.37

        0.47





        1/4”

        7/8

        1-1/2

        2~12

        0.63

        0.80





        3/8”

        1

        1-1/2

        2~12

        0.84

        1.10





        1/2”

        1-1/8

        1-1/2

        2~12

        1.27

        1.62

        1.95

        2.55

        3/4”

        1-3/8

        2

        2-1/2~12

        1.69

        2.20

        2.90

        3.64

        1”

        1-1/2

        2

        2-1/2~12

        2.50

        3.24

        4.24

        5.45

        1-1/4”

        1-5/8

        2-1/2

        3~12

        3.39

        4.47

        5.61

        7.77

        1-1/2”

        1-3/4

        2-1/2

        3~12

        4.05

        5.41

        7.25

        9.55

        2”

        2

        2-1/2

        3~12

        5.44

        7.48

        11.11

        13.44

        2-1/2”

        2-1/2

        3

        3-1/2~12

        8.63

        11.41

        14.92

        20.39

        3”

        2-5/8

        3

        3-1/2~12

        11.29

        15.27

        21.35

        27.68

        3-1/2”

        2-3/4

        4

        4-1/2~12

        13.57

        18.64





        4”

        2-7/8

        4

        4-1/2~12

        16.08

        22.32

        33.54

        41.03

        5”

        3

        4-1/2

        5~12

        21.77

        30.97

        49.12

        57.43

        6”

        3-1/8

        4-1/2

        5~12

        28.26

        42.56

        67.57

        79.22

        1. Dimensions in Millimeters.
        2. Thickness in accordance with ASME B1.20.1
        3. Weld bevel in accordance with ASME B16.25
        4. Weight in accordance with ASME B36.10M Table 1.

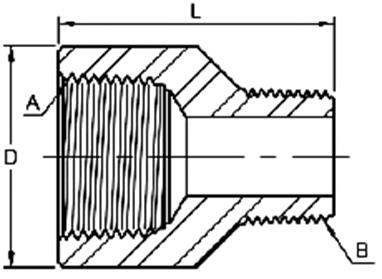

        Shape of Thread


        Adapter Threaded


        3000LB



        DN

        Nom Pipe Size

        A



        D



        L

        Threaded Size

        B

        8

        1/4”

        19

        33

        1/8”

        10

        3/8”

        22

        35

        1/4”

        15

        1/2”

        28

        42

        3/8”

        20

        3/4”

        35

        47

        1/2”

        25

        1”

        44

        55

        3/4”

        32

        1-1/4”

        57

        63

        1”

        40

        1-1/2”

        64

        66

        1-1/4”

        50

        2”

        76

        76

        1-1/2”

        65

        2-1/2”

        92

        90

        2”

        80

        3”

        108

        110

        2-1/2”

        100

        4”

        140

        120

        3”

            • Dimensions in Millimeters.
            • Thickness in accordance with ANSI / ASME B1.20.1 1983
            • Dimensions may vary according to the customers’ and manufacturer’s requirement.

            Union (Male x Female)




            3000LB

            Nom Pipe Size

            A (2)
            (Min)



            B



            L

            1/4”

            19.0

            13.7

            55.4

            3/8”

            22.9

            17.1

            60.0

            1/2”

            27.7

            21.3

            68.0

            3/4”

            33.5

            26.7

            75.9

            1”

            41.4

            33.4

            86.0

            1-1/4”

            50.5

            42.2

            95.1

            1-1/2”

            57.2

            48.3

            100.5

            2”

            70.1

            60.3

            112.1

            1. Dimensions in Millimeters.
            2. Dimensions refer to MSS SP-83 Table 5.
            3. Thickness in accordance with ANSI / ASME B1.20.1 1983

            Dimensions may vary according to the customers’ and manufacturer’s requirement

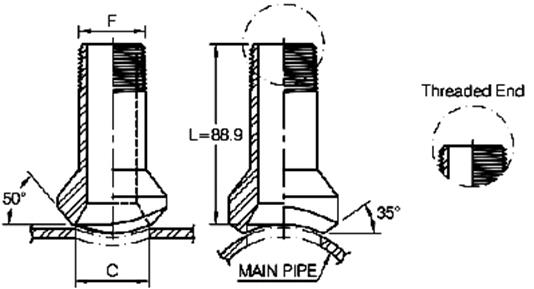

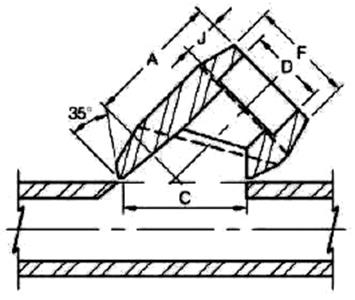

            Branch Outlet Threaded




            Text Box: Out-Let	Reducing Way  	A	C	F  Pipe			  						  NPS  (in)	3000lb (Sch80)	6000lb (Sch160)	3000lb (Sch80)	6000lb (Sch160)	3000lb (Sch80)	6000lb (Sch160)  1/8”	19.0		13.7		17.3	  1/4”	19.0		13.7		22.0	  3/8”	21.0		17.1		25.8	  1/2”	25.0	32.0	21.3	16.6	31.3	33.9  3/4”	27.0	37.0	26.7	21.2	37.1	41.2  1”	33.0	40.0	33.4	27.0	45.5	49.9  1-1/4”	33.0	41.0	42.2	35.8	57.0	58.6  1-1/2”	35.0	43.0	48.3	41.2	64.0	66.7  2”	38.0	52.0	60.3	51.6	76.0	83.2  2-1/2”	46.0		73.0		92.0	  3”	51.0		88.9		109.2	  4”	57.0		114.3		140.0	    Text Box: Out-Let Pipe NPS  (in)	Straight Way  	A	C	F  	3000lb  1/8”			  1/4”	19.0	11.5	22.0  3/8”	21.0	14.5	25.9  1/2”	25.0	16.5	31.4  3/4”	27.0	21.5	37.1  1”	33.0	27.2	45.5  1-1/4”	33.0	36.0	57.0  1-1/2”	35.0	42.0	64.0  2”	38.0	53.0	76.0  2-1/2”	46.0	65.0	92.0  3”	51.0	80.0	109.2  4”	57.0	104.0	140.0

            1. Dimensions in Millimeters.
            2. Thread in accordance with ASME B1.20.1
            3. 3000LBS outlet size 4 and less fit a number of run pipe sizes and the fitting are marked accordingly.

            Dimensional Tolerance of MSS SP-97-2006

            Item

            1/8” to 3/4”

            1” to 4”

            Face of fitting to crotch (A)

            ± 0.76

            ± 1.52

            Conventional Run Size Combinations



            OUTLET SIZE

            1/4”

            3/8”

            1/2”

            3/4”

            1”

            1-1/4”

            1-1/2”

            2”

            2-1/2”

            3”

            4”

            RUN SIZE (Main Pipe)

            Reducing way

            3/8”~3/4”

            1/2”

            3/4”

            1”

            1-1/4”

            1-1/2”

            2”

            2-1/2”

            3”

            3-1/2”

            5”

            1”~36”

            3/4”~1-1/4”

            1”

            1-1/4”

            1-1/2”

            2”

            2-1/2”

            3”

            3-1/2”

            4”

            6”



            1-1/2”~36”

            1-1/4”

            1-1/2”

            2”

            2-1/2”

            3”

            3-1/2”

            4”

            5”

            8”





            1-1/2”~3”

            2”~3”

            2-1/2”

            3”

            3-1/2”

            4”

            5”

            6”

            10”





            3-1/2”~36”

            3-1/2”~6”

            3”

            3-1/2”~5”

            4”~5”

            5”~6”

            6”

            8”

            12”~14”







            8”~36”

            3-1/2”~4”

            6”~8”

            6”~10”

            8”~10”

            8”

            10”

            16”~18”









            5”~10”

            10” ~ 36”

            12”~36”

            12”~18”

            10”~14”

            12”~16”

            20”~24”









            12~36”





            20”~36”

            16”~36”

            18”~36”

            26”~36”

            Straight way



















            3-1/2”

            5”



            3/8”~36”



            1/2”~36”



            3/4”~36”



            1”~36”



            1-1/4”~1-1/2”
            2”~36”

            1-1/2”
            2”~3”
            3-1/2”~36”

            2”
            2-1/2”~4”
            5”~36”

            2-1/2”
            3”~3-1/2”
            4”~6”
            8”~36”

            3”
            3-1/2”~4”
            5”~8”
            10”~36”

            4”
            5”
            6”
            8”~12”

            6”
            8”
            10”
            12”~16”



















            14”~36”

            18”~36”

            Each charted outlet size is designed to fit a number of run pipe size.

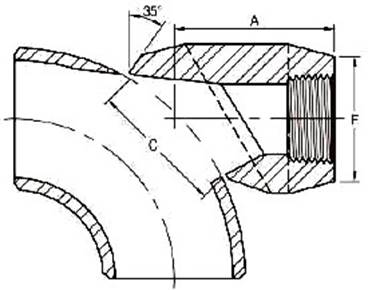

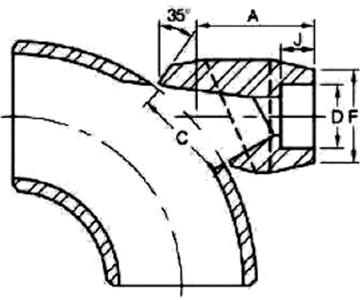

            90° Elbow Outlet Threaded


            3000LB

            Outlet Pipe



            A



            C



            F

            DN

            Inch

            8

            1/4”

            40.5

            35.2

            22.0

            10

            3/8”

            40.5

            35.2

            25.9

            15

            1/2”

            40.5

            35.2

            31.4

            20

            3/4”

            47.6

            43.6

            37.1

            25

            1”

            55.6

            54.0

            45.5

            32

            1-1/4”

            60.3

            67.5

            57.0

            40

            1-1/2”

            66.7

            76.2

            64.0

            50

            2”

            81.0

            104.8

            76.0

            65

            2-1/2”

            82.6

            106.4

            92.0

            80

            3”

            96.8

            125.4

            109.2

            100

            4”

            114.3

            163.5

            140.0

            6000LB


            Outlet Pipe



            A



            C



            F

            DN

            Inch

            8

            1/4”

            40.5

            34.9

            26.0

            10

            3/8”

            40.5

            34.9

            33.0

            15

            1/2”

            47.6

            34.9

            38.0

            20

            3/4”

            55.6

            43.6

            44.0

            25

            1”

            60.3

            54.0

            57.0

            32

            1-1/4”

            66.7

            67.5

            64.0

            40

            1-1/2”

            85.7

            76.2

            76.0

              • Dimensions in Millimeters.
              • Thread in accordance with ASME B1.20.1
              • Dimensions may vary according to the customer’s and manufacturer’s requirement.

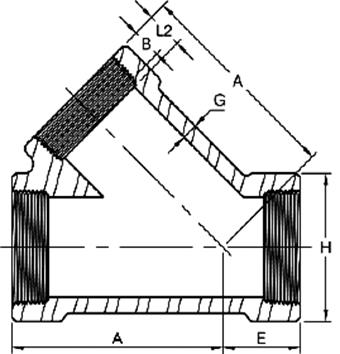

              45° Lateral Tee Threaded




              DN

              Nom. Pipe Size

              Length of Thread (Min)



              A



              E

              G (2)
              (Min)

              H (2)

              B (3)

              L2 (3)

              15

              1/2”

              10.9

              13.6

              46

              20

              3.18

              33

              20

              3/4”

              12.7

              13.9

              55

              23

              3.18

              38

              25

              1”

              14.7

              17.3

              65

              26

              3.68

              46

              32

              1-1/4”

              17.0

              18.0

              73

              31

              3.89

              56

              40

              1-1/2”

              17.8

              18.4

              82

              35

              4.01

              62

              50

              2”

              19.0

              19.2

              113

              42

              4.27

              75

              65

              2-1/2”

              23.6

              28.9

              136

              56

              5.61

              92

              3000LB


              DN

              Nom. Pipe Size

              Length of Thread (Min)

              A

              E

              G (2)
              (Min)

              H (2)

              B (3)

              L2 (3)

              15

              1/2”

              10.9

              13.6

              55

              23

              4.09

              38

              20

              3/4”

              12.7

              13.9

              65

              26

              4.32

              46

              25

              1”

              14.7

              17.3

              73

              31

              4.98

              56

              32

              1-1/4”

              17.0

              18.0

              82

              35

              5.28

              62

              40

              1-1/2”

              17.8

              18.4

              113

              42

              5.56

              75

              50

              2”

              19.0

              19.2

              136

              56

              7.14

              84

              1. Dimensions in Millimeters.
              2. Dimensions refer to ANSI B16.11
              3. Dimension B is minimum length of perfect thread.

              The length of useful thread (B plus threads with fully formed roots and flat crests) shall not be less than L2 (effective length of external thread) required by American National Standard for pipe threads (ANSI/ASME B1.20.1)

              1. Dimensions of BSP and PT are available if required.
              2. Dimensions may vary according to the customer’s and manufacturer’s requirement.

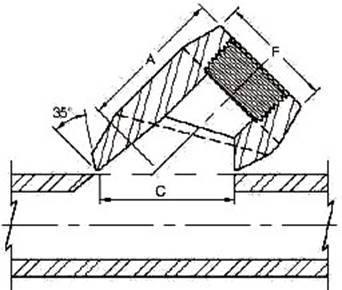

              Lateral Outlet Threaded


              Outlet Pipe



              A



              C



              F

              DN

              Inch

              8

              1/4”

              40.5

              35.2

              22.0

              10

              3/8”

              40.5

              35.2

              25.9

              15

              1/2”

              40.5

              35.2

              31.4

              20

              3/4”

              47.6

              43.6

              37.1

              25

              1”

              55.6

              54.0

              45.5

              32

              1-1/4”

              60.3

              67.5

              57.0

              40

              1-1/2”

              66.7

              76.2

              64.0

              50

              2”

              81.0

              104.8

              76.0

              65

              2-1/2”

              82.6

              106.4

              92.0

              80

              3”

              96.8

              125.4

              109.2

              100

              4”

              114.3

              163.5

              140.0

              6000LB


              Outlet Pipe



              A



              C



              F

              DN

              Inch

              8

              1/4”

              40.5

              34.9

              26.0

              10

              3/8”

              40.5

              34.9

              33.0

              15

              1/2”

              47.6

              34.9

              38.0

              20

              3/4”

              55.6

              43.6

              44.0

              25

              1”

              60.3

              54.0

              57.0

              32

              1-1/4”

              66.7

              67.5

              64.0

              40

              1-1/2”

              85.7

              76.2

              76.0

              1. Dimensions in Millimeters.
              2. Thread in accordance with ASME B1.20.1
              3. Dimensions may vary according to the customer’s and manufacturer’s requirement.


              Nipple Branch Outlet Threaded




              Outlet Pipe

              C



              F

              3000LB

              6000LB

              1/2”

              23.8

              13.8

              21.3

              3/4”

              30.2

              18.9

              26.7

              1”

              36.5

              24.3

              33.4

              1-1/4”

              44.5

              32.5

              42.2

              1-1/2”

              50.8

              38.1

              48.3

              2”

              65.1

              49.2

              60.3

              1. Dimensions in Millimeters.
              2. Thread in accordance with ASME B1.20.1

              Dimensions may vary according to the customer’s and manufacturer’s requirement

              Unions Socket Weld

              Socket Weld End MSS-SP-83-2006







              Nom. Pipe Size

              Pipe End



              (Min.) A

              Socket Bore Dia.



              B

              Socket Wall



              (Min.) C

              Water Way Bore

              D

              Laying Length



              E

              Male Flange



              (Min.) F

              Nut



              (Min.) G

              Thread s Per 25.4mm



              H

              Bearing



              (Min.) J

              Depth of Socket

              (Min.) K

              Length Assem
              . Nom.



              L

              Clear Assem. Nut



              N

              1/8”

              21.8

              11.18
              10.67

              3.18

              7.59
              6.07

              22.4
              19.1

              3.18

              3.18

              16

              1.24

              9.7

              41.4

              50.8

              1/4”

              21.8

              14.61
              14.10

              3.30

              10.01
              8.48

              22.4
              19.1

              3.18

              3.18

              16

              1.24

              9.7

              41.4

              50.8

              3/8”

              25.9

              18.03
              17.53

              3.51

              13.28
              11.76

              26.9
              20.6

              3.43

              3.43

              14

              1.37

              9.7

              46.0

              55.9

              1/2”

              31.2

              22.23
              21.73

              4.09

              16.56
              15.04

              26.9
              20.6

              3.68

              3.68

              14

              1.50

              9.7

              49.0

              58.4

              3/4”

              37.1

              27.56
              27.05

              4.27

              21.69
              20.17

              31.8
              25.4

              4.06

              4.06

              11

              1.68

              12.7

              56.9

              66.0

              1”

              45.5

              34.29
              33.78

              4.98

              27.41
              25.88

              34.3
              26.2

              4.57

              4.45

              11

              1.85

              12.7

              62.0

              78.7

              1-1/4”

              54.9

              43.05
              42.55

              5.28

              35.81
              34.29

              40.6
              32.5

              5.33

              5.21

              11

              2.13

              12.7

              71.1

              94.0

              1-1/2”

              61.5

              49.15
              48.64

              5.54

              41.66
              40.13

              42.2
              34.0

              5.84

              5.59

              10

              2.31

              12.7

              76.5

              111.8

              2”

              75.2

              61.62
              61.11

              6.05

              53.26
              51.74

              45.5
              37.3

              6.60

              6.35

              10

              2.69

              15.7

              86.1

              132.1

              2-1/2”

              91.7

              74.45
              73.81

              7.67

              64.24
              61.19

              61.7
              52.1

              7.49

              7.11

              8

              3.07

              15.7

              102.4

              149.9

              3”

              109.2

              90.42
              89.79

              8.31

              79.45
              76.40

              63.8
              53.6

              8.26

              8.00

              8

              3.53

              15.7

              109.0

              175.3

                  1. Dimensions in Millimeters.

              Upper and lower values for each size are the respective maximum and minimum dimensions

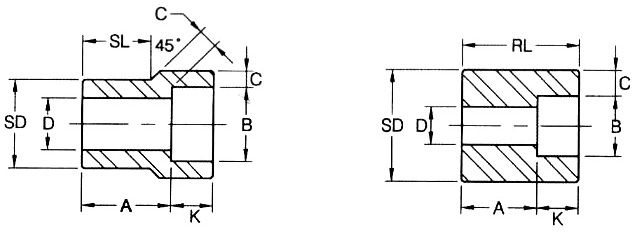

              Socket Welding MSS-SP-79-2009



              Nom. Pipe Size

              Type

              Socket



              Shank Dia. SD

              Laying Length A

              Bore

              D

              Wall Min. C

              Length



              Dia. B

              Depth Min. K

              SL

              RL (Min)



              3000



              6000

              3000

              6000

              3000

              6000

              3000

              6000

              3000

              6000

              3000

              6000

              3”x2-1/2”

              1

              1

              74.07

              16

              88.90

              38

              57

              62.5

              54.0

              8.76



              32

              45





              3”x2”

              2

              2

              61.37

              16

              88.90

              25

              32

              52.5

              43.0

              6.93







              48

              54

              3”x1-1/2”

              2

              2

              48.90

              13

              88.90

              29

              32

              41.0

              34.0

              6.35







              48

              54

              3”x1-1/4”

              2

              2

              42.80

              13

              88.90

              30

              32

              35.0

              29.5

              6.07







              48

              54

              3”x1”

              2

              2

              34.04

              13

              88.90

              32

              32

              26.5

              21.0

              5.69







              48

              54

              4”x3”

              2



              90.04

              16

              114.30

              33



              78.0



              9.50







              60



              4”x2-1/2”

              2



              74.07

              16

              114.30

              38



              62.5



              8.76







              60



              4”x2”

              2



              61.37

              16

              114.30

              38



              52.5



              6.93







              60



              4”x1-1/2”

              2



              48.90

              13

              114.30

              42



              41.0



              6.35







              60



              4”x1-1/4”

              2



              42.80

              13

              114.30

              43



              35.0



              6.07







              60



              • Dimensions in Millimeters.
              • At the option of the manufacturer type 2 reducer may be furnished in type 1 configuration.

              Dimensional Tolerance of Reducer Insert



              Laying Length A

              Size Size
              Size

              3/8”
              1”
              2-1/2”

              through through
              through

              3/4”
              2”
              4”

              +
              +
              +

              1.50mm / -0.00mm
              2.00mm / -0.00mm
              2.50mm / -0.00mm

              Socket Diameter B

              Size
              Size

              1/4”
              2-1/2”

              through
              through

              2”
              3”

              ±
              +

              0.25mm
              0.40mm / -0.25mm

              Bore D

              Size
              Size

              1/4”
              2-1/2”

              through
              through

              2”
              3”

              ±
              ±

              0.80mm
              1.50mm



              Shank Diameter SD

              Size
              Size Size

              3/8”
              2”
              4”

              through through

              1-1/2”
              3”

              ±
              ±
              ±

              0.25mm
              0.50mm 0.75mm



              Shank Length SL

              Size
              Size Size

              3/8”
              1”
              2-1/2”

              through
              through through

              3/4”
              2”
              4”

              ±
              ±
              ±

              0.00mm / -1.50mm
              0.00mm / -2.00mm
              0.00mm / -2.50mm



              Bosses Socket Weld
              BS3799-1974





              DN



              Nom. Pipe Size



              B
              (Min)

              D

              J
              (Min)

              F

              C
              (Min)

              3000lb

              6000lb

              3000lb

              6000lb

              3000lb

              6000lb

              3000lb

              6000lb

              6

              1/8”

              10.7

              6.8



              10.0



              28.0



              3.2



              8

              1/4”

              14.1

              9.2



              10.0



              32.0



              3.3



              10

              3/8”

              17.6

              12.5



              11.0



              34.0



              3.5



              15

              1/2”

              21.8

              15.5

              11.8

              13.0

              13.0

              38.0

              38.0

              4.1

              5.2

              20

              3/4”

              27.4

              21.0

              15.5

              13.0

              13.0

              38.0

              38.0

              4.3

              6.1

              25

              1”

              34.1

              26.6

              20.7

              16.0

              16.0

              35.0

              35.0

              5.0

              7.0

              40

              1-1/2”

              49.0

              40.5

              34.0

              19.0

              19.0

              32.0

              32.0

              5.6

              7.8

              50

              2”

              61.0

              52.0

              43.0

              22.0

              22.0

              29.0

              29.0

              6.1

              9.5

              65

              2-1/2”

              73.8

              62.0

              54.0

              22.0

              22.0

              29.0

              29.0

              7.7

              10.4

              80

              3”

              89.7

              78.0

              66.0

              22.0

              22.0

              29.0

              29.0

              8.3

              12.2

              Dimensions in Millimeters.


              90° Elbow Outlet Socket Weld


              3000LB

              Outlet Pipe



              A



              C



              F



              D



              J

              DN

              Inch

              8

              1/4”

              40.5

              35.2

              22.0

              14.35

              10.0

              10

              3/8”

              40.5

              35.2

              25.9

              17.80

              10.0

              15

              1/2”

              40.5

              35.2

              31.4

              21.95

              11.1

              20

              3/4”

              47.6

              43.6

              37.1

              27.30

              12.7

              25

              1”

              55.6

              54.0

              45.5

              34.05

              13.5

              32

              1-1/4”

              60.3

              67.5

              57.0

              42.80

              15.1

              40

              1-1/2”

              66.7

              76.2

              64.0

              48.90

              15.9

              50

              2”

              81.0

              104.8

              76.0

              61.35

              17.5

              65

              2-1/2”

              82.6

              106.4

              92.0

              74.15

              23.8

              80

              3”

              96.8

              125.4

              109.2

              90.10

              28.6

              100

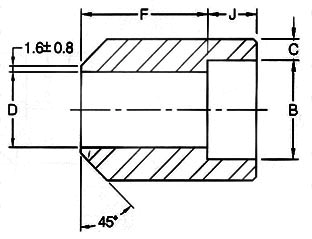

              4”

              114.3

              163.5

              140.0

              115.75

              29.4

              6000LB


              Outlet Pipe



              A



              C



              F



              D



              J

              DN

              Inch

              8

              1/4”

              40.5

              34.9

              26.0

              14.35

              10.0

              10

              3/8”

              40.5

              34.9

              33.0

              17.80

              10.0

              15

              1/2”

              47.6

              34.9

              38.0

              21.95

              10.0

              20

              3/4”

              55.6

              43.6

              44.0

              27.30

              14.3

              25

              1”

              60.3

              54.0

              57.0

              34.05

              15.9

              32

              1-1/4”

              66.7

              67.5

              64.0

              42.80

              20.6

              40

              1-1/2”

              85.7

              76.2

              76.0

              48.90

              20.6

              • Dimensions in Millimeters.
              • Dimensions refer to ANSI B16.11

              Dimensions may vary according to the customer’s and manufacturer’s requirement

              45° Lateral Tee Socket Weld


              3000LB



              DN

              Nom. Pipe Size

              B (2)

              B (2)

              D (1)



              A



              E

              G (2)
              (Min)

              J (2)
              (Min)

              (Avg)

              (Min)

              15

              1/2”

              21.8

              4.67

              4.09

              15.8

              35

              9

              3.75

              9.5

              20

              3/4”

              27.2

              4.90

              4.27

              21.0

              41

              9

              3.95

              12.5

              25

              1”

              33.9

              5.69

              4.98

              26.7

              51

              12

              4.55

              12.5

              32

              1-1/4”

              42.7

              6.07

              5.28

              35.1

              59

              17

              4.85

              12.5

              40

              1-1/2”

              48.8

              6.35

              5.54

              40.9

              68

              21

              5.10

              12.5

              50

              2”

              61.2

              6.93

              6.04

              52.5

              95

              24

              5.55

              16.0

              65

              2-1/2”

              73.9

              8.76

              7.67

              62.7

              118

              38

              7.05

              16.0

              6000LB



              DN

              Nom. Pipe Size

              B (2)

              B (2)

              D (2)



              A



              E

              G (2)
              (Min)

              J (2)
              (Min)

              (Avg)

              (Min)

              15

              1/2”

              21.8

              5.97

              5.18

              11.8

              41

              9

              4.78

              9.5

              20

              3/4”

              27.2

              6.96

              6.04

              15.6

              51

              12

              5.56

              12.5

              25

              1”

              33.9

              7.92

              6.93

              20.7

              59

              17

              6.35

              12.5

              32

              1-1/4”

              42.7

              7.92

              6.93

              29.5

              68

              21

              6.35

              12.5

              40

              1-1/2”

              48.8

              8.92

              7.80

              34.0

              95

              24

              7.14

              12.5

              50

              2”

              61.2

              10.92

              9.50

              42.9

              106

              31

              8.74

              16.0

                • Dimensions in Millimeters.
                • Dimensions refer to ANSI B16.11
                • Dimensions may vary according to the customer’s and manufacturer’s requirement.

              Lateral Outlet Socket Weld




              3000LB

              Outlet Pipe



              A



              C



              F



              D



              J

              DN

              Inch

              8

              1/4”

              40.5

              35.2

              22.0

              14.35

              10.0

              10

              3/8”

              40.5

              35.2

              25.9

              17.80

              10.0

              15

              1/2”

              40.5

              35.2

              31.4

              21.95

              11.1

              20

              3/4”

              47.6

              43.6

              37.1

              27.30

              12.7

              25

              1”

              55.6

              54.0

              45.5

              34.05

              13.5

              32

              1-1/4”

              60.3

              67.5

              57.0

              42.80

              15.1

              40

              1-1/2”

              66.7

              76.2

              64.0

              48.90

              15.9

              50

              2”

              81.0

              104.8

              76.0

              61.35

              17.5

              65

              2-1/2”

              82.6

              106.4

              92.0

              74.15

              23.8

              80

              3”

              96.8

              125.4

              109.2

              90.10

              28.6

              100

              4”

              114.3

              163.5

              140.0

              115.75

              29.4

              6000LB


              Outlet Pipe



              A



              C



              F



              D



              J

              DN

              Inch

              8

              1/4”

              40.5

              34.9

              26.0

              14.35

              10.0

              10

              3/8”

              40.5

              34.9

              33.0

              17.80

              10.0

              15

              1/2”

              47.6

              34.9

              38.0

              21.95

              10.0

              20

              3/4”

              55.6

              43.6

              44.0

              27.30

              14.3

              25

              1”

              60.3

              54.0

              57.0

              34.05

              15.9

              32

              1-1/4”

              66.7

              67.5

              64.0

              42.80

              20.6

              40

              1-1/2”

              85.7

              76.2

              76.0

              48.90

              20.6

              • Dimensions in Millimeters.
              • Dimensions refer to ANSI B16.11
              • Dimensions may vary according to the customer’s and manufacturer’s requirement.



whatsapp chat
